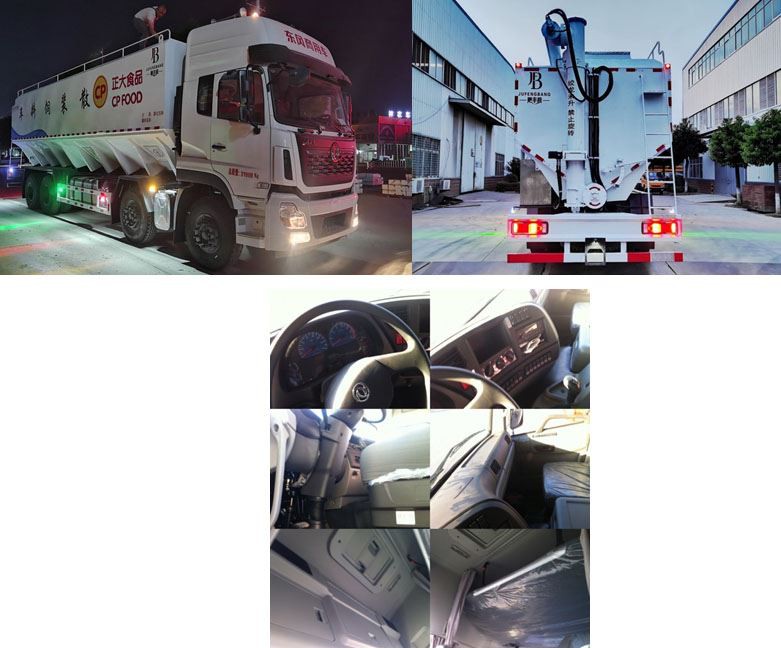

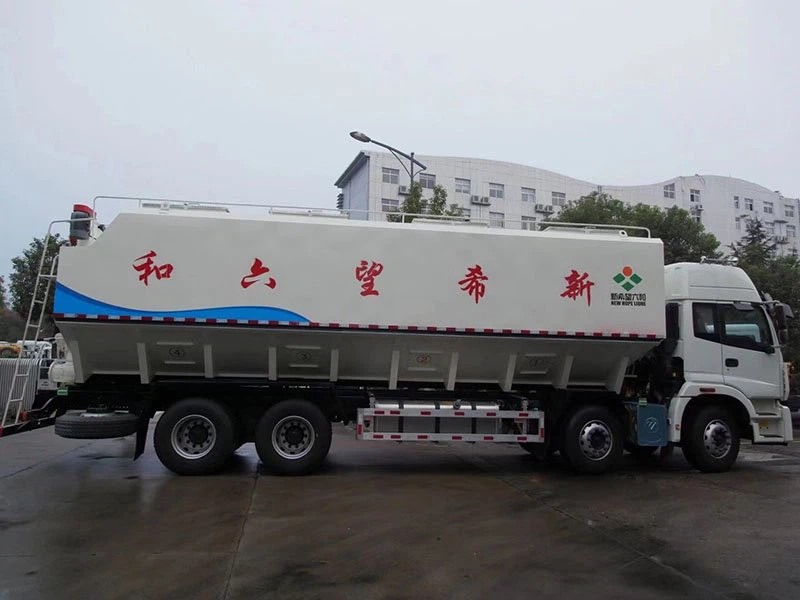

Bulk Feed Truck Silo Capacity 31CBM
Capacity of Silo 31CBM
Model Number: CSC5313ZSLDL3
Model Year :2021
OPTIONS
● Hand Hold Remote Control
● Aluminum Tank
●TANKselect material thickness 5mm
Manufacturer Specification
APPLICATION
Pig Farm/Chicken Farm/Feed mill/Etc.
DESCRIPTION
Feed delivery truck, also called bulk feed transport truck, is a special vehicle mainly used to transportation of bulk feed, powder feed, non-corrosive bulk material, pharmaceutical powder and grain feed from the truck to the silo. It could storage pellet feed and mash feed. Every tank has 2-4 compartments, it could load different feed.

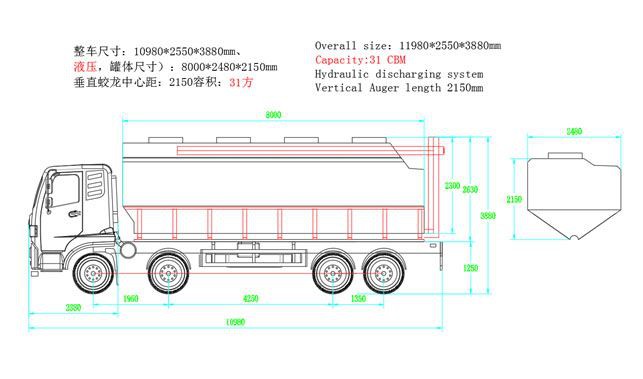

GENERAL DRAWING
BODY FEATURES
● All-welded aluminum alloy tank, base and bulkheads.
● The hermetic transportation of bulk feed can reduce loss, keep quality and avoid pollution.
● Continuous operation increases work efficiency.
● Quality hydraulic pump and hydraulic motor
● Convenient to operate, and easy to maintain.
AUGER/HYDRAULICS

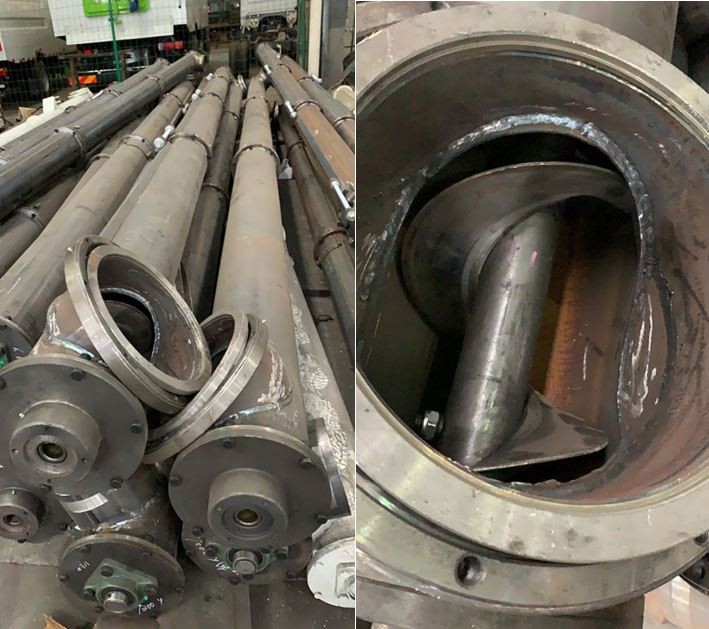

● 1 no. of 12” floor auger, steel tube , steel auger
● 2 no. of hydraulic motor driven in front and rear of the tanker

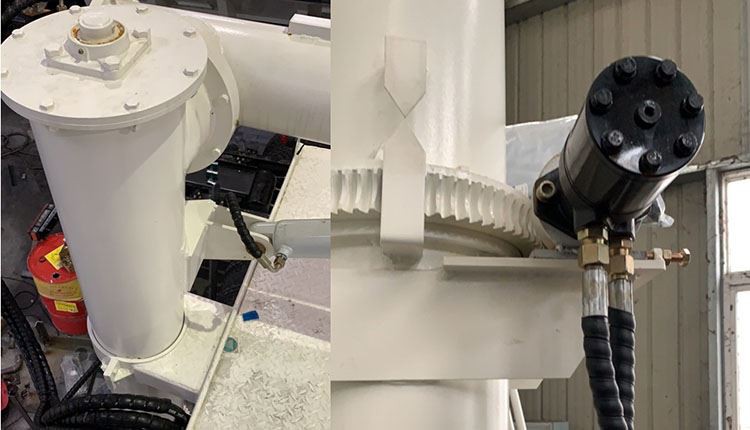

● 16”vertical auger, 1 no. of hydraulic motor drive gear flange on vertical auger tube 180 degree rotation

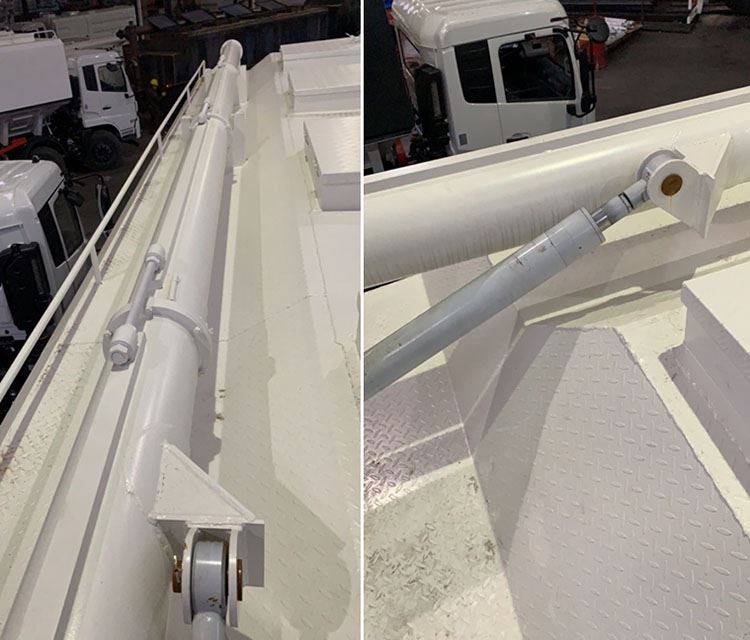

● 12” discharge auger in tank top, full length with tank. With hydraulic cylinder lifting
● Driver side Rear mount control valves with aluminum valve box with manual or remote control(optional)
● Rear pit discharge on the floor auger
● 1 no. DENISON Direct couple tandem pumps

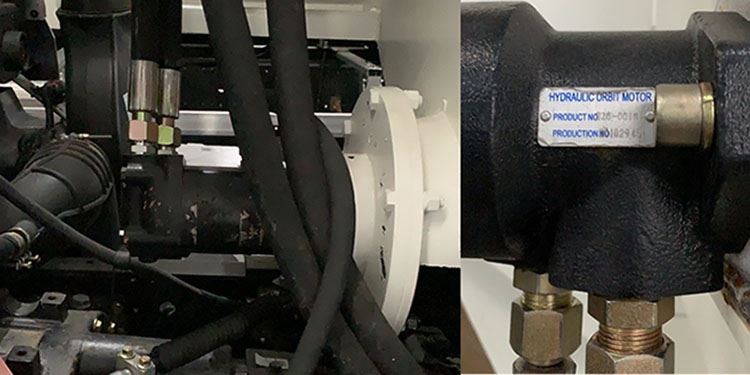

● 4 no. of EATON auger motors.

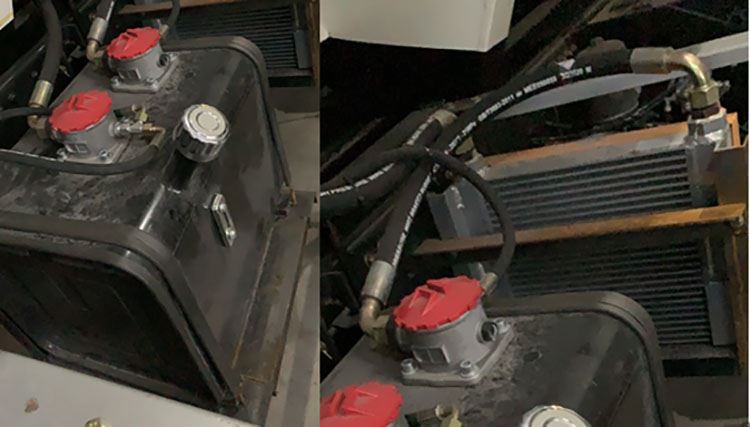

● 1 no. of Big volume reservoir with filters, with 1 no. of radiator
● 1 no. of Controls box located at the driver’s side
● 1 no. of Manufacturer original power take-off.
● 1 no. of climb ladder in the rear tank

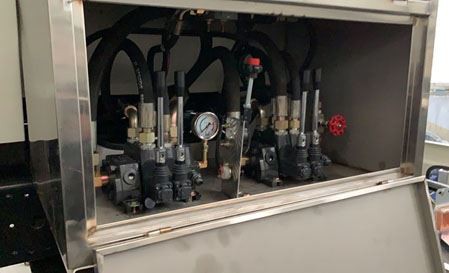

● 4 no. Monoblock valve in the control box

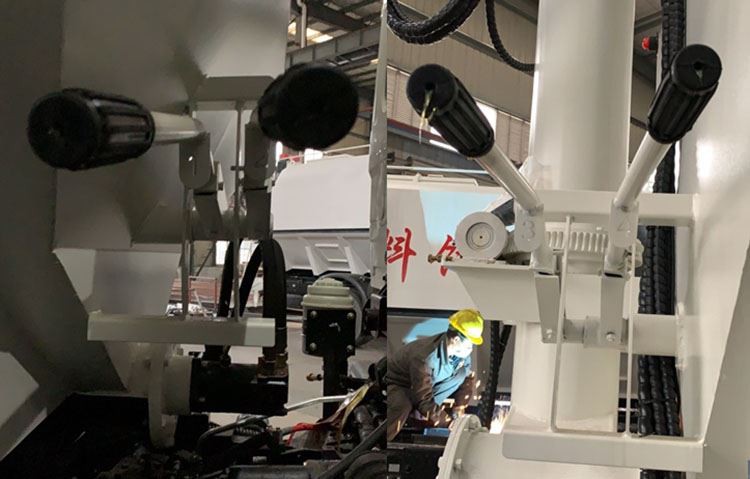

● Manual open/closed Compartment Gates
Front 2 no. (handle marked 1, 2 for #1 and #2 compartments)Rear 2 no.(handle marked 3,4 for #3 and # 4 compartments)

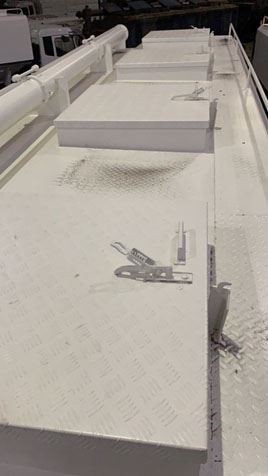

● 4 no. of top square loading port with cover and locks

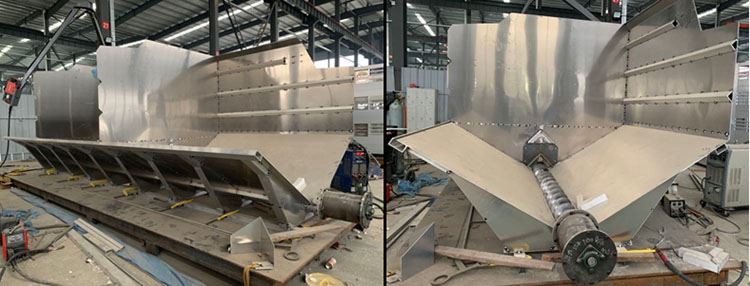

Aluminum alloy tank manufacturing
Specification
Model Number/Line | CSC5313ZSLDL3 |
Drive type | 8X4 Tank Truck Lorry |
Color | |
Cabin | |
Equipment’s | |
Kerb mass(kg) | 12505kg (approx.) |
GVW (kg) | 30600kg |
Dimensions | 11980mm×2500mm×3980mm |
Wheel base(mm) | 1950+4250+1300mm |
Engine | Cummins Dongfeng L315 30 |
Power(hp) | 315hp |
Displacement(L) | 8.9L |
Max. torque | 1200N·m |
Emission Standard | EURO3 |
Transmission | FAST 12JS160T |
Material | |
Gear Shift | 12 speed manual transmission |
Gear Ratio | |
Clutch | |
Diameter（mm） | |
Suspension | |
Front Suspension | Leaf spring |
Rear Suspension | Leaf spring |
Axles | |
Front axle | Double 5T axles, loading capacity: 6400kg/6400 kg |
Rear axle | Double axles, loading capacity: 17800KG |
Ratio | 4.44 |
Brake | |
Running brake | Dual circuit compressed air brake |
Parking brake | Spring energy compressed air brake |
Assistant brake | Engine exhaust brake |
Wheel & Tire | |
Tyres | Tire number: 12pcs Size: 11.00R20 |
Fuel tank | |
Tank capacity(L) | 350L |
Standard | |
Tank Weldment | Aluminum alloy |
Tank Body Size | 8000×2480×2150mm |
Capacity | 31 m3 |
Tank Shell Thickness | 3 mm |
Rear/End Lib Thick | 3mm |
Tank Inner Baffle Thick | 3mm |
No. of Compartments | 4 |
Discharge speed(m3/h) | ≥120 |
Max Transport Height (m) | ≥9.5 |
Max Transport Length (m) | ≥8.5 |
Conveying capacity（Kg/min） | 1000 |
Residue rate (%) | ≤0.022% |
Bracing Support No. | 9 |
Rotation | 180°(left and right) |
