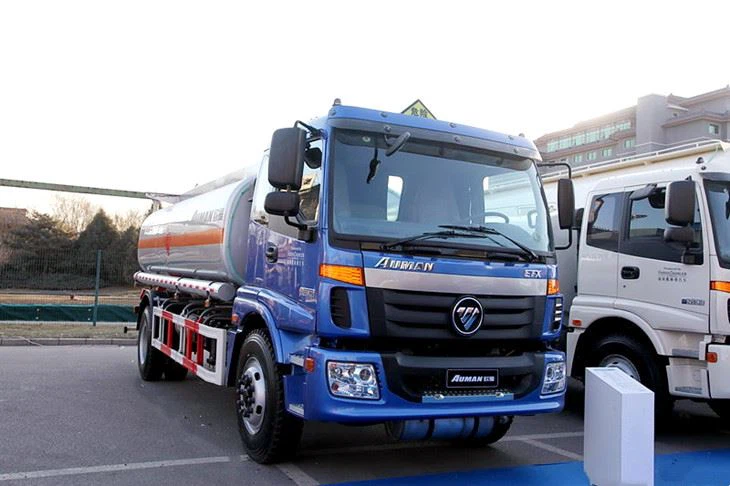

Chassis Make: FOTON/AUMAN EST-M G.V.W: 18-20tons Engine Make/Horsepower/displacement: Weichai/270hp/9.726L Wheelbase: 4600mm Transmismsion Make/Gears: Shanxi FAST / 9F+1R Tire specs.:11.00R20 Oil Tank Capacity:10,000Liters
WHY CHOOSE CSCTRUCK OIL TANK TRUCK
FOTON AUMAN EST is produced by technologies of Daimler-Benz and U.S. Cummins and partnered with the world's automotive industry leaders including German ZF and WABCOM
Used for transporting drinking water/potable water and dust-control in places with high corrosive environments, such as power plants, near the sea. ect
Completely custom built to customer's specifications
Produced for high-quality, durability, and excellent performance
Fast draw from any water source
A powerful 270hp of the heavy-duty truck is adopted to handle all types of terrain
SPECIFICATION
4x2 (6Wheelers) FOTON OIL TANK TRUCK | ||
Chassis configuration | ||
vehicle model | BJ5182GSS-1 | |
Main dimensions of the vehicle | Outer dimension (L× W × H) mm | 8110×2500×3160 |
drive type | 4×2 | |
Wheelbase (mm ) | 4600 | |
Wheel base (front/ rear) mm | 2010/1865 | |
Quality parameters | Vehicle curb weight (kg ) | 7004 |
Rated loading mass (kg ) | 10866 | |
Rated number of passengers (person) | 3 | |
Total mass (kg ) | 18000 | |
Main performance parameters of the vehicle | Maximum speed (km/h ) | 89 |
Maximum grade (% ) | 38 | |
engine | model | WP10.270E32 |
Displacement (L ) | 9.726 | |
Calibration power/ calibration speed ( kw/rpm ) | 199/270(2200 ) | |
Maximum torque/ speed ( Nm/rpm ) | 1100(1200-1600) | |
transmission | model | 9JS119T-B(Q) iron (with power take-off) |
clutch | Type | φ430 diaphragm spring clutch |
rear axle | Type/ Main reducer speed ratio | 13T dual-stage deceleration /4.8 |
suspension | Front Suspension/ Number of Springs | Vertical leaf spring + barrel shock absorber , 9 |
Rear Suspension/ Number of Springs | Longitudinal main and auxiliary leaf springs, 9+6 | |
steering gear | AM75L | |
brake system | service brake type | Double circuit pneumatic drum |
Parking brake type | Energy storage spring air brake | |
auxiliary brake | Engine Exhaust Brake | |
Number of wheels and tire size | 6+1/11.00R20 | |
Fuel tank (L) | 380 | |
basic configuration | Manual cab lift, airbag seat, manual mirror glass lifter, air conditioner | |
| Oil Tank Capcity | 10,000Liters | |
| Material of Water Tank | Mild steel, stainless steel optional | |
| Function | Transporting & refulling petrol & diesel | |
